Brand Name: SENPHUS
Model Number: SHRH
Place of Origin: Jiangsu, China (Mainland)
Customize 12V 24v 48v 110v 115v 120v 220v 230v 240v 380v 400v silicone heat blanket of ul:
UL: E347661 Model: SH-SR
silicone heat blanket is one of the lighter and flexibler heater.
The heating elements have two material, one is nickel chrome heating wire, another is etching foil. Both of them are heating fast and thermal conversion efficiency high.So silicone heaters blanket are widely used on industry, agriculture, medical and household electrical.We can customize as your voltage, size, shape, watts and other request.

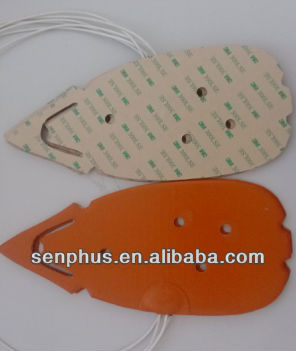

If you need fix the heater onto the heated parts, you could tell us. And we will equip 3M high tempearture tape on the silicon heater for you.
Silicone heater blankets are widely used in many fileds, for example,
1,anti-freeze protection and anti-compress for many types of instruments and equipment.
2, medical equipment such as blood analyzers, test tube heter, drying machine, spread sheet etc.
3, outdoor communication devices such as camera lens defroster.
4, plastic film vulcanication and forming
5, car fuel tank, cooling water tank, etc. insulation and glass defroster
6, power distribution cabinet, small machine room, etc. dehumidification
NOTE: you can customize the silicone heating pads according to your voltage, size, power and so on.
Some features of silicone heat blanket are follow.
NO. |
Description |
Parameter |
1. |
Certification |
UL and Rohs |
2. |
Voltage range |
1.5v~400v |
3. |
Power density range |
0.03w/cm2~2.5w/cm2 (0.19w/inch2~16.13w/inch2) |
4. |
Using temperature range |
-60~250°C (-140~482°F) |
5. |
Width range |
10mm~1200mm (0.39"~47.24") |
6. |
Length range |
10mm~40000mm (0.39"~1574") |
7. |
Thickness range |
1~20mm(0.039"~0.79"),standard:1mm(0.039") and 1.5mm(0.059") |
8. |
Plug |
Chinese,British, American, European and so on |
9. |
Quality guarantee |
1 year |
10. |
Life |
more than 4 years(normal useful) |
11. |
MOQ |
1 piece |
OEM and ODM is welcome,can print your logo |
||

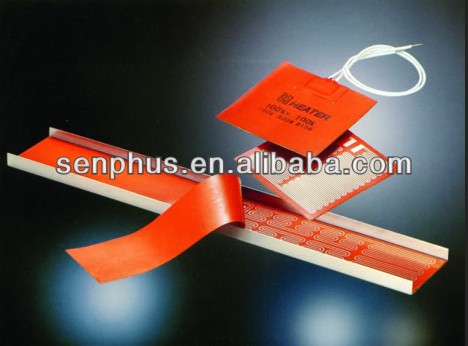

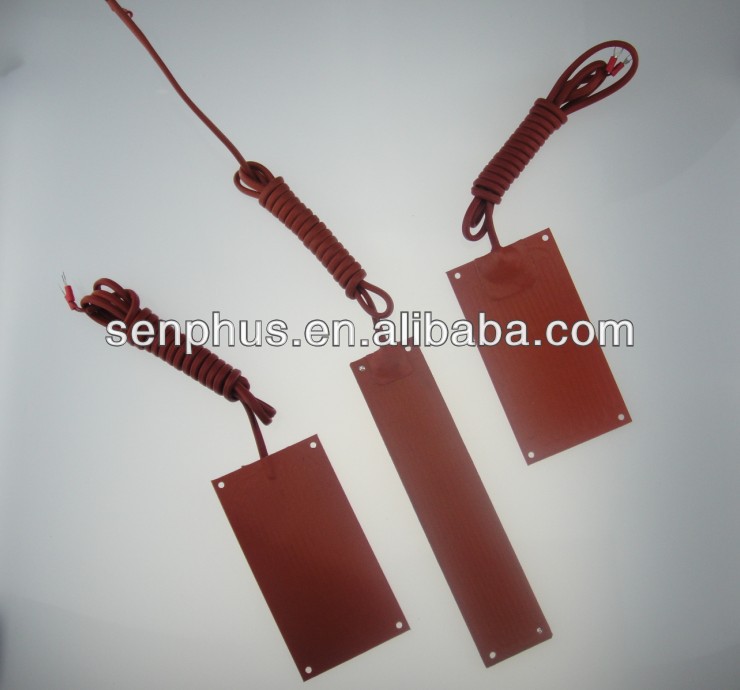

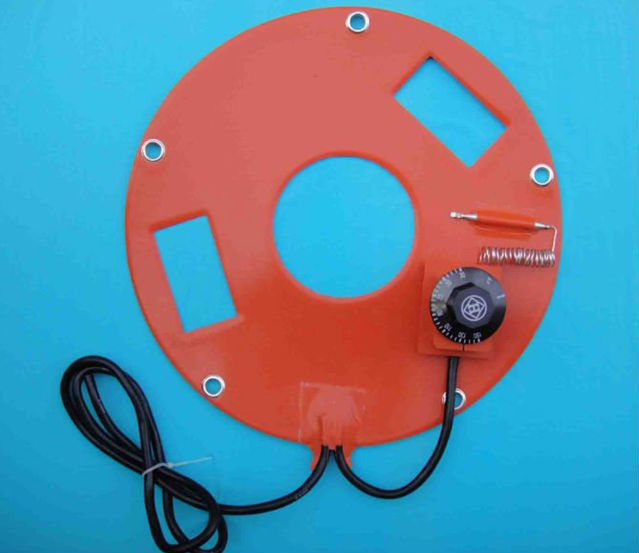

silicone heat blanket
pictures:
